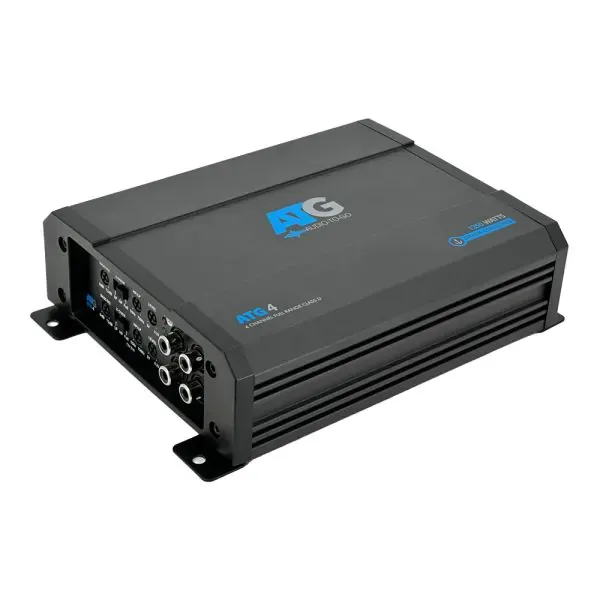

ATG Audio 1000W Class D 4 Channel Full Range Mini Amplifier

Full Range Class D Amplifier

• 4 Channel Full Range Class D Technology
• 2-Ohms Stereo load Capability
• Marine grade conformal coating on PCB
• Audiophile Grade RCA connectors
• Variable 12db High/Low-pass crossover filters
• Bridgeable outputs @ 4-Ohms load
• Double Sided Circuit tablet
• Compatible with any 4/2-Ohms Loudspeaker
• Output Power @ 14.4 VDC, 4-Ohms 4 x 125W
• Output Power @ 14.4 VDC, 2-Ohms 4 x 250W
• Output Power @ 14.4 VDC, Bridge 2 x 500W
• Power Supply Input Voltage 12.0VDC to14.8VDC
• TTHD (1kHz @ 4-Ohms): 0.04%
• Bandwidth (-3 dB): 18Hz - 22KHz
• Damping Factor (1k Hz @ 4-Ohms): 100
• S/N ratio ( as weighted @ 1 Volt): 99db
• Input Sensitivity: .20V - 5.0V RMS
• Minimum Load Impedance: 2-Ohms
• Input Pre in RCA
• Channel 1-2 filter range: 55Hz - 750Hz
• Channel 3-4 filter range: 55Hz - 750Hz
• Variable Bass Boost: 45Hz @ 0 ~ 12dB

This powerful amplifier delivers clear, crisp sound even in the harshest marine environments. With its powerful 1000W peak power and 2Ω mono load capability, this amplifier can easily drive even the most demanding speakers. The Class D circuitry ensures that the amplifier delivers clean, accurate sound, while the marine grade components help to keep the amplifier cool even under heavy loads. The 1000W Class D 4 Channel Full Range Mini Amplifier also features a variety of features that make it easy to use and customize, including a variable low pass crossover, bass boost, and sub-sonic filter.

BENEFITS:

Powerful sound

Reliable construction

User-friendly features
